Viper CS Crawl Space Vapor Barrier
Unrivaled Tear Strength. Superior Puncture Resistance. Maximum Moisture Protection.
-
Puncture Resistant
-
Tear Resistant
-
Moisture Barrier
-
Radon Barrier
Made Smart
Viper CS manufacturing begins with premium quality virgin resin that contains no recycled content, which is critical because materials containing reground plastic will break down over time and are easier to puncture and tear.

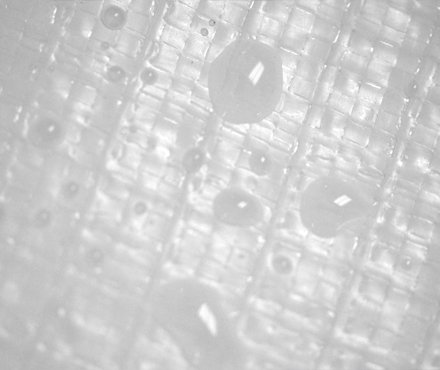

The resin is converted to strands of polyethylene that are woven together in a tight hatch pattern. The cross-woven membrane is then coated on both sides with proprietary extrusion layers to create a finished membrane.
Made Tough
The engineered composition of Viper CS gives it superior tear strength, puncture resistance and water vapor permeance when compared to traditional materials.
High marks on critical performance specifications make Viper CS the ideal choice for demanding jobsite environments.
Made for Crawl Spaces
Viper CS comes in a bright white color that gives the crawl space a fresh, clean look while combating the harmful effects of radon, moisture, mold and mildew.
High-performance encapsulated crawl spaces don’t rest solely on quality material. Installing Viper CS properly is critical to longevity of the system. To promote best practices and professional grade installs, ISI supports a nationwide distribution network and year-round training opportunities.
6.5 MIL
-
Roll Size 12’ x 100’
Roll Weight 37 lbs
Rolls Per Pallet 25
Pallet Weight 931 lbs
Pallet Size 74” x 42” x 29”
-
Thickness 6.5-mil
Weight 25 lbs
Classification CLASS A, B, C
Tensile Strength 69 lbf/in
Tear Strength. 35 lbs / 35 lbs
Grab Tensile 117 lbf
Bursting Strength 210 lbs
Puncture Resistance 60 lbs
CBR Puncture 255 lbf
Max Use Temp 180°F
Min Use Temp -70°F
Flame Spread CLASS A
Permeance .0095 perms
-
10 MIL
-
Roll Size 12’ x 100’
Roll Weight 50 lbs
Rolls Per Pallet 25
Pallet Weight 1,307 lbs
Pallet Size. 73” x 48” x 39”
-
Thickness 10-mil
Weight 36 lbs
Classification CLASS A, B, C
Tensile Strength 136 lbf/in
Tear Strength 54 lbs
Grab Tensile 138 lbf
Bursting Strength 210 lbs
Puncture Resistance 76 lbs
CBR Puncture 626 lbf
Max Use Temp 180
Min Use Temp -70
Flame Spread CLASS A
Permeance .0016 perms
-
16 MIL
-
Roll Size 12’ x 100’
Roll Weight 63 lbs
Rolls Per Pallet 25
Pallet Weight 1,645 lbs
Pallet Size 75” x 41” x 42”
-
Thickness 16-mil
Weight 47 lbs
Classification CLASS A, B, C
Tensile Strength 167 lbf/in
Tear Strength 62 lbs
Grab Tensile 242 lbf
Bursting Strength 371 lbs
Puncture Resistance 123 lbs
CBR Puncture 594 lbf
Max Use Temp 180
Min Use Temp -70
Flame Spread CLASS A
Permeance .0015 perms
-
Accessories
-
Viper Vapor Tape
Viper Vapor Tape is a white polyethylene coated film with an aggressive adhesive designed for seaming, splicing, sealing, patching and hanging vapor barrier materials.
-
Viper Double Bond Tape
Viper Double Bond Tape is a double-sided butyl tape used for “double-locking” seams and as a gasket material between vapor barrier membrane and foundation walls.
-
Pier Wrap
Viper Pier Wrap utilizes our Viper CS configuration and is conveniently sized to help complete install details around pipes, penetrations, piers and structural supports.
-
Viper Liner Pins
Viper Crawl Space Liner Pins are the best way to secure vapor barrier materials to masonry walls providing a strong mechanical attachment in concrete block, brick or stone.
